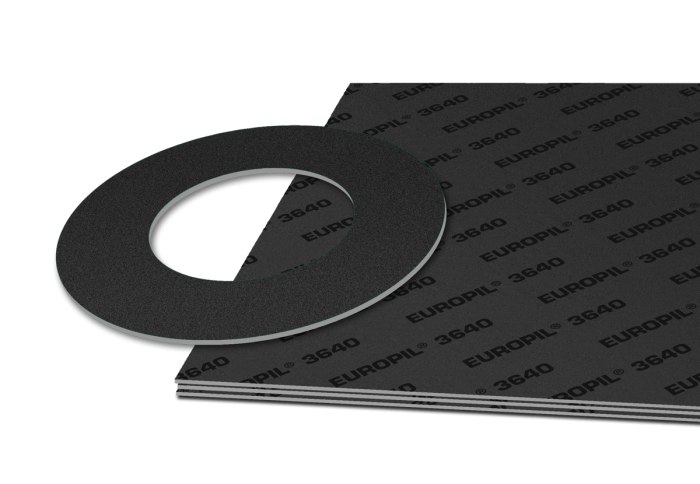

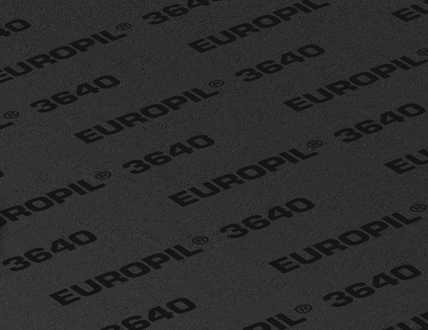

EUROPIL^® 3640

Universal gasket sheet with best temperature and pressure resistance.

The application profile of EUROPIL^® 3640 is characterized by high temperature resistance, high mechanical stability, great gas tightness at high temperatures, good chemical resistance and high strength.

Basis

Aramid fibers bonded with NBR.

Areas of application

This gasket material is suitable for hydrocarbons like oils or solvents, alcohols, glycols, aqueous solutions, water and steam as well as weak alkalines and organic acids.
The material is partly suitable for ketone and ester, chlorinated solvents as well as strong alkalines and inorganic acids.

Typical technical data for thickness 2.0 mm

Density		g/cm³	1.7
Compressibility ASTM F 36 J		%	12
Recovery ASTM F 36 J		%	50
Stress relaxation DIN 52913	50 MPa, 16 h / 175 °C 50 MPa, 16 h / 300 °C	MPa MPa	35 25
KLINGER cold/hot compression 50 MPa	thickness decrease at 23 °C thickness decrease at 300 °C	% %	15 22
Tightness	DIN 28090-2	mg/s x m	0.1
Thickness increase after fluid immersion ASTM F 146	oil IRM 903: 5 h / 150 °C fuel B: 5 h / 23 °C	% %	8 12
Cold compression	DIN 28090-2	%	10
Cold recovery	DIN 28090-2	%	5
Hot compression	DIN 28090-2	%	17
Hot recovery	DIN 28090-2	%	2
Max. surface pressure EN 13555	23 °C 200 °C 250 °C	N/mm² N/mm² N/mm²	> 200 60 60

Dimensions of the standard sheets

Sizes	1000 x 1500, 2000 x 1500 mm
Thicknesses	0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm Other thicknesses on request
Tolerances	Thickness acc. to DIN 28091-1 Length ±50 mm, Width ±50 mm

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
